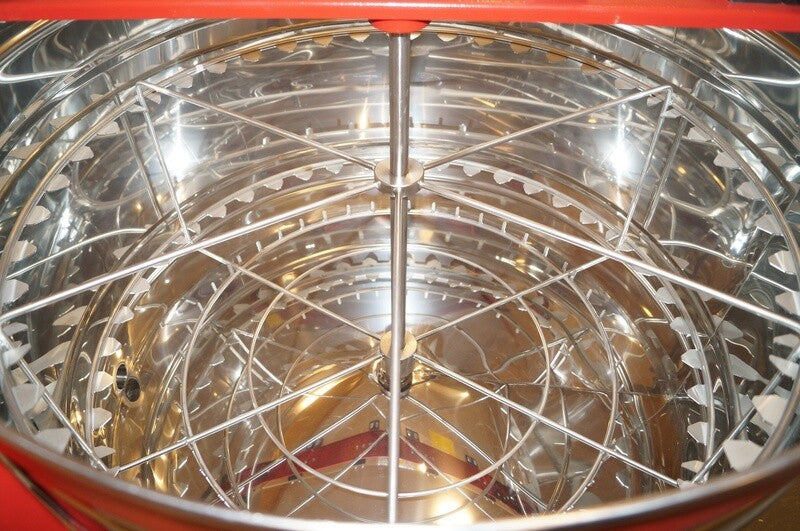

The CLASSIC Line 30-Frame Radial Honey Extractor boasts an impressive Ø800 mm size and an electric drive for optimal efficiency. With an automatic controller, this extractor streamlines the honey extraction process.
Automatic control has eight programs. The first two programs are designed to work in manual mode, the third program - automatic, has factory settings. Programs from 4 to 8 (automatic) allow you to enter your own settings. Each program consists of 7 steps. At each step, you can set three parameters - step start time, set speed and direction of rotation. The seventh, last step defines the time of stopping the basket of honey extractor.
Specifications:
| Product line | CLASSIC |
| Honey extractor type | Radial |
| Drum diameter | Ø800 |
| Power | 230V |
| Frive | Electric, bottom mounted motor |
| Contoller | HE-02N |
| Power | 0.37kW geared motor |
| Thickness of drum wall | 0.6 mm |
| Thickness of plexiglass lid | 4 mm |
| Valve | Stainless 6/4" |
| Top bar | A flat bar 100 × 10 mm, powder coated |
| Legs | Powder coated 50 x 30 mm |
| Hinges | Plastic, 4 pcs |
| Drum height | 640 mm |
| Drum support | Powder coated |
| Strengthening cross | Powder coated |
| Stainless steel rod | Ø10 and Ø8 mm |
| Shipped | Crated on Pallet |
| Guarantee |
Guarantee 5 years Guarantee for electrical components, controller, motor and drive components 2 years |
